Garmin ECHOMAP Ultra 106sv Control Head Only

The ECHOMAP Ultra combos offer bright, sunlight-readable 10” keyed-assist touchscreen displays and have all the tools you need for successful fishing. The combos offer built-in support for our premium sonars, including traditional CHIRP, CHIRP ClearVü and CHIRP SideVü scanning sonars and Ultra High-Definition scanning sonar. They also support Panoptix LiveScope™ LVS12 sonar, the Panoptix LiveScope system and the entire Panoptix™ all-seeing sonar line. Share sonar, waypoints and routes with other ECHOMAP Ultra 10” and 12” units as well as ECHOMAP Plus 7” and 9” units. Preloaded BlueChart® g3 charts and LakeVü g3 cartography feature integrated data from Navionics® and Auto Guidance technology , and built in Quickdraw Contours mapping software lets you create your own fishing maps with 1’ contours as you fish. Transducer is not included.
Features:

• Keyed assist 10″ touchscreen
• Preloaded Bluechart g3 charts and LakeVu g3 maps
• ActiveCaptain app
• Connect to share sonar, data and charts with your other devices
• Create maps on the fly, and tailor themt o fit your needs
• Supports a variety of Garmin transducers (sold separately) including Panoptix and Panoptix LiveScope LVS12
• Built-in UHD Sonar
• Network capable with EchoMap Ultra or EchoMap Plus units 7″ to 12″
• NMEA 200 Network Compatibility
• Force Trolling motor compatibility
• Quick-disconnect bail mount to quickly install or remove your unit
• Connect this chartplotter to different kinds of engines — including select Mercury and Yamaha® models — to see RPMs, fuel flow, temperature, trim and other important information at a glance.
• Dimension: 11.6″ x 7.7″ x 3.9″
• Display size: 8.5″ x 5.4″ 10″ diagonal
• Display resolution: 1280 x 800 pixels
• Weight: 4 lb
• 2 microSD card capability
• GPS support
• AIS support
• GCV Black Box sonar support
• Sailing features

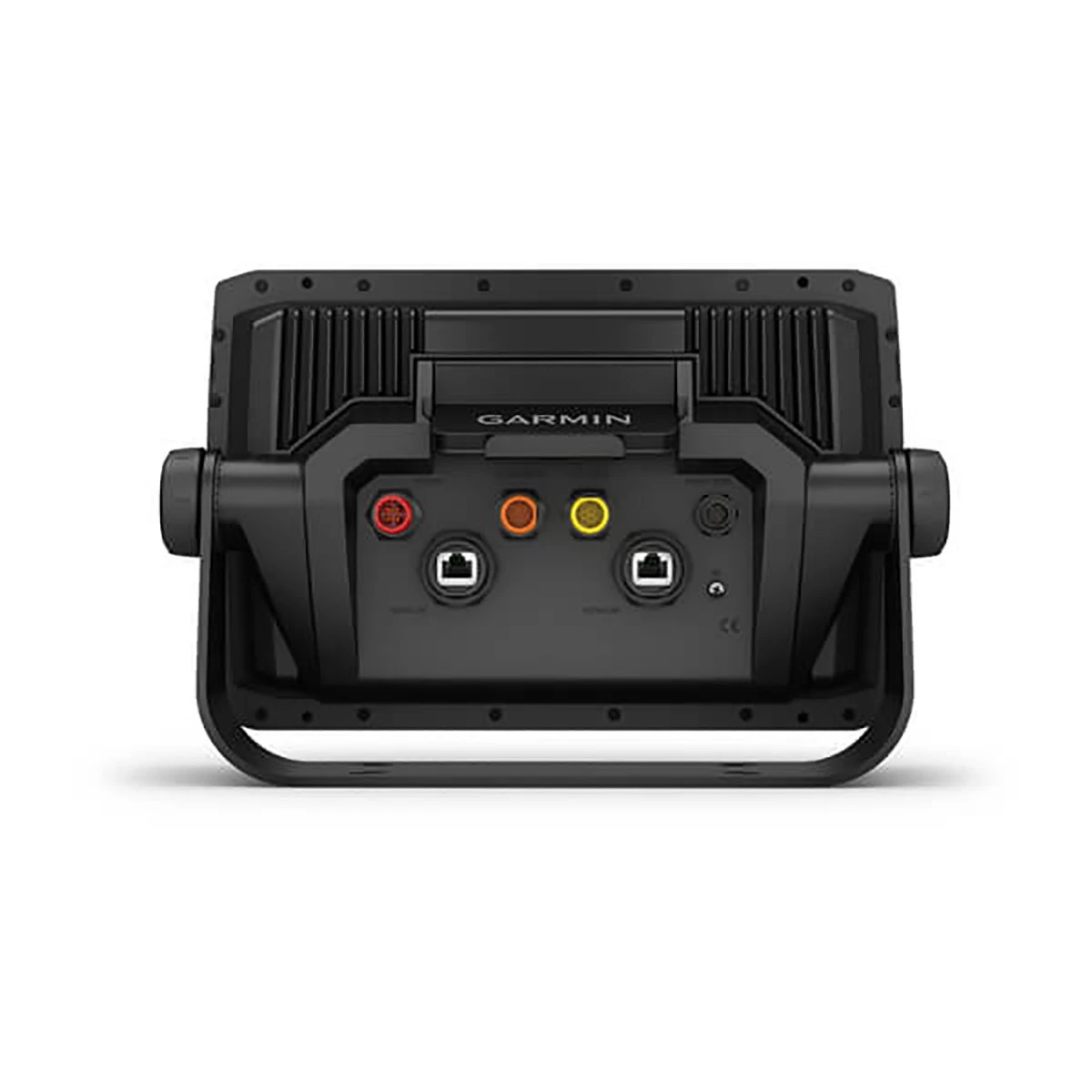

• 2 Garmin Marine network ports

In the box:

• ECHOMAP Ultra 106sv with BlueChart g3 and LakeVü g3 for U.S.
• Power/data cable
• Tilt mount with quick release cradle
• 8-pin transducer to 12-pin sounder adapter cable
• Flush mount
• Protective cover
• Hardware
• Documentation
